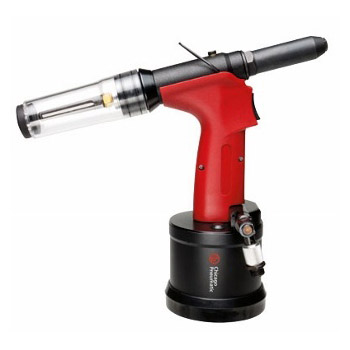

Heavy Duty Air Riveter
CP9883 / Chicago Pneumatic
Benefits
- Enlarge applications coverage
- Durable, reliable and easy to service
- Maximize operator comfort
Next day delivery available on stock items if ordered by 3pm
Next Day Delivery
on many products
Best Web Price
on most lines
Secure Checkout
shop with confidence
Related products
Features
- Heavy-duty air riveters
- Compact size and composite body
- 3/16″ (4.8mm) max. capacity
- Heavy pulling: up to 1900 lbs (865 kg)
- Low vibrations and low noise level
- Includes: 3/32″, 1/8″, 5/32″ and 3/16″ (2.4, 3.2, 4 and 4.8 mm) nose pieces
- Jaw pusher for 2.4 & 3.2 mm rivets, jaws, syringe, service wrenches and oil bottle
Specifications
| Product Model | |
|---|---|
| Sound DBA Pressure | 66 db(A) |
| Min. Hose Size | 10mm 3/8" |
| Noise Level | 55 db(A) |
| Air Inlet Thread Size | 0.25 in. |
| Actual Air Consumption | 2.1 l/s 4.5 cfm |
| Average Air Consumption | 0.5 l/s 1.15 cfm |
| Length | 300mm 11.8" |
| Net Weight | 1.46 kg 3.2 lb |
| Max Axial Pulling Load | 865 kg 1900 lb |
| Model | CP9883 |
| Part Number | 8941098830 |
| Vibration (ISO-8662-12) | <2.5 m/s2 |
| Sizes | |
| Classification |
